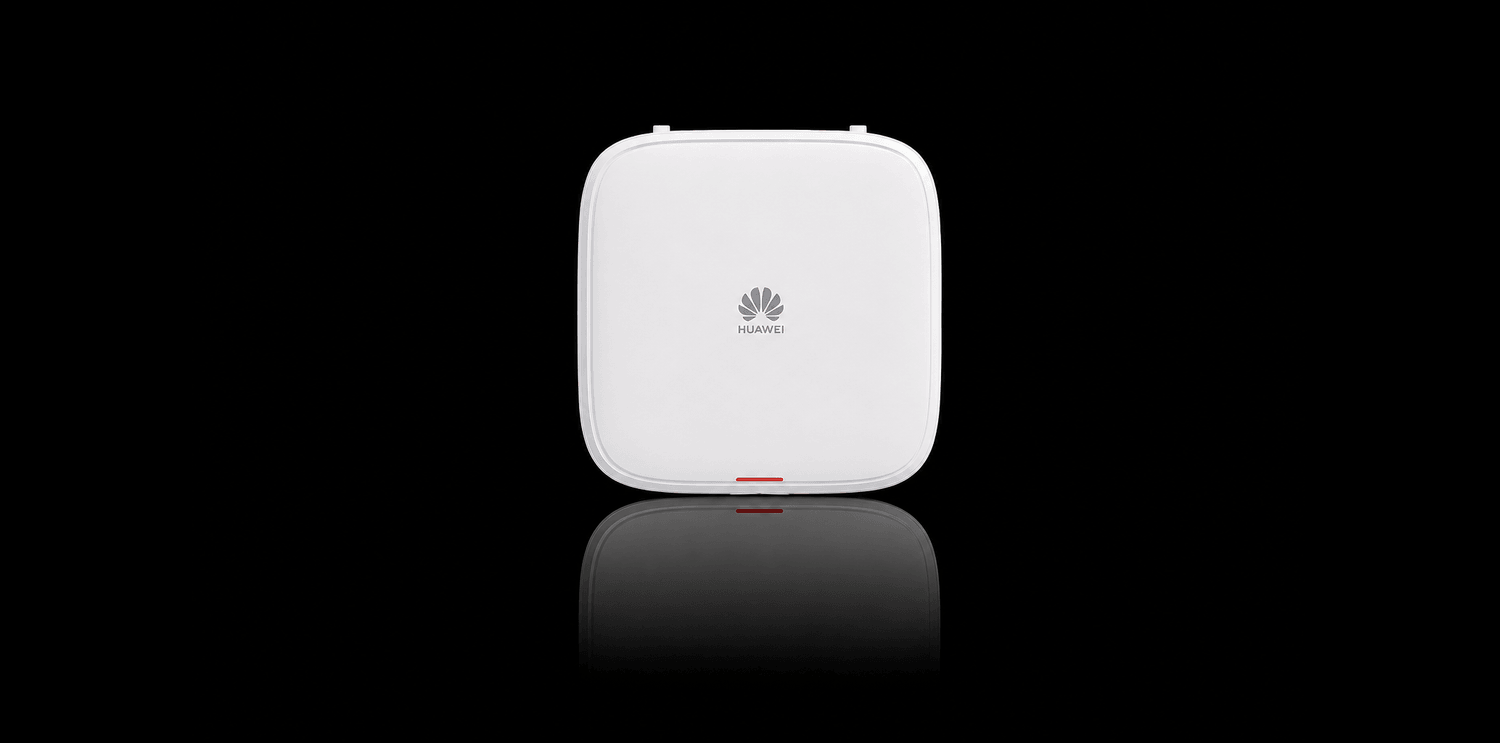

AirEngine 6776-58TI Access Point
As device density and bandwidth demands escalate in modern workplaces, educational institutions, and public venues, legacy wireless networks struggle to keep pace. The need for faster, more reliable, and higher-capacity connectivity has never been more critical for maintaining productivity and delivering a seamless user experience.
The Huawei AirEngine 6776-58TI is a next-generation indoor access point engineered to meet these challenges head-on. By leveraging the latest Wi-Fi 7 (802.11be) standard, this AP delivers a significant leap in performance, offering multi-gigabit speeds, massive user capacity, and enhanced stability. It is purpose-built for demanding indoor scenarios where high-performance wireless is not a luxury, but a necessity.
The AirEngine 6776-58TI redefines indoor wireless capabilities by integrating cutting-edge technology into a compact and efficient design. It achieves a peak data rate of 7.89 Gbit/s across eight spatial streams, ensuring ultra-fast performance for bandwidth-intensive applications like 4K/8K video streaming, AR/VR, and large file transfers. Its flexible tri-band operation allows it to adapt to diverse network requirements, operating in either a dual-band (2.4 GHz + 5 GHz) or a high-capacity tri-band (2.4 GHz + 5 GHz + 6 GHz) mode.
Beyond raw speed, the AP features built-in dual-band co-planar smart antennas that intelligently suppress interference and optimize signal coverage, eliminating dead zones and providing a stable connection for every user. Security is enhanced with Huawei's innovative Wi-Fi Shield technology, which prevents eavesdropping by ensuring data is transmitted precisely to the target terminal. The device also functions as a powerful IoT gateway, with extensive expansion options including dual IoT slots, a USB port, and BLE 5.4 to support a wide array of smart devices and applications.
Selecting the right wireless infrastructure is critical for meeting performance, security, and scalability goals. Nexus ITX helps organizations navigate the complexities of next-generation Wi-Fi solutions by focusing on your specific operational requirements and technical environment.
We facilitate a thorough evaluation process to ensure the chosen access points align perfectly with your long-term network strategy and business objectives.
Q: What is the main advantage of the AirEngine 6776-58TI being a Wi-Fi 7 access point?
A: The primary advantage is its superior performance based on the 802.11be standard. This includes significantly higher data rates (up to 7.89 Gbit/s), increased capacity for more devices, lower latency, and improved efficiency, especially in dense wireless environments.
Q: How many users can the AirEngine 6776-58TI support simultaneously?
A: The access point is designed for high-density scenarios and can support a maximum of 1800 concurrent users, making it suitable for locations like large offices, lecture halls, and retail centers.
Q: What are the power supply options for this access point?
A: The AirEngine 6776-58TI can be powered via a DC input (43.2 V to 57.6 V) or by Power over Ethernet (PoE). It supports the 802.3bt/at standards and features dual PoE inputs for hot backup to ensure continuous operation in case one power source fails.
Q: How does the flexible tri-band functionality work?
A: The access point can operate in two modes. The first is a dual-band mode using the 2.4 GHz and 5 GHz frequencies. The second is a tri-band mode that adds the 6 GHz frequency, providing additional channels and bandwidth to reduce congestion and boost performance, particularly for Wi-Fi 7 and Wi-Fi 6E compatible devices.
Q: What makes the built-in antennas "smart"?
A: The built-in smart antennas automatically analyze the wireless environment. They can dynamically adjust their signal patterns to suppress interference from other devices and enhance signal strength towards connected clients. This results in more stable connections and eliminates coverage holes.
Q: How does the Wi-Fi Shield technology enhance security?
A: Wi-Fi Shield technology is an innovative security feature that ensures wireless data packets are precisely directed and delivered only to the intended recipient terminal. This prevents nearby malicious users with sniffing tools from eavesdropping on the wireless communication, adding a layer of data privacy.
Q: What kind of IoT devices can this AP connect with?
A: The AP acts as an IoT gateway, featuring two built-in IoT card slots, a USB port, and integrated BLE 5.4. This allows it to support a wide range of IoT protocols and connect with various terminals, such as those using RFID for asset tracking or ZigBee for building automation.
Q: How can Nexus ITX help me determine if this AP is right for my organization?
A: Nexus ITX can assist by helping you evaluate your specific wireless requirements, such as user density, application performance needs, and existing infrastructure. We help compare the capabilities of the AirEngine 6776-58TI against these requirements to determine if it's the right fit for your technology roadmap.
Contact us to discuss your technical requirements and see if this Wi-Fi 7 access point is the right fit for your organization.
