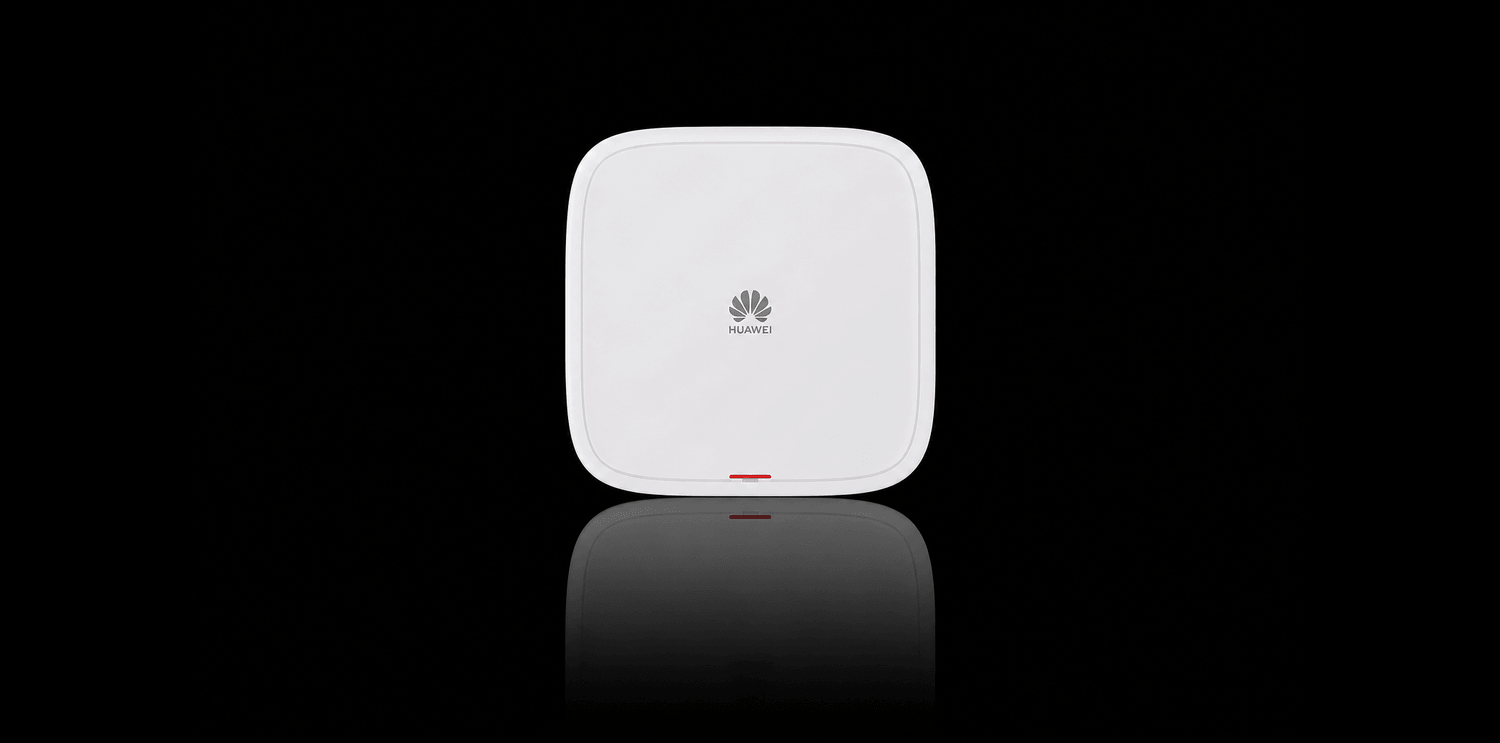

AirEngine 6776-X7TH Access Point
In today's hyper-connected business environments, wireless networks must deliver more than just speed. They need to support immense device density while actively defending against sophisticated security and privacy threats. The Huawei AirEngine 6776-X7TH is a next-generation indoor access point engineered to meet these dual demands, combining the breakthrough performance of Wi-Fi 7 with innovative, built-in security technologies.
Designed for enterprises where both high-throughput connectivity and data confidentiality are non-negotiable, this AP provides a robust foundation for modern digital operations. It moves beyond standard Wi-Fi capabilities to offer a new layer of environmental awareness and protection, making it a strategic choice for high-stakes settings like corporate offices, healthcare facilities, and hotels.
The Huawei AirEngine 6776-X7TH harnesses the power of the 802.11be (Wi-Fi 7) standard to deliver exceptional wireless performance. Operating across three bands (2.4 GHz, 5 GHz, and 6 GHz) with up to 8 spatial streams, it achieves a theoretical data rate of 13.66 Gbps. This allows it to support up to 1800 concurrent users, effortlessly handling the demands of bandwidth-intensive applications and high-density deployments.
What truly sets this access point apart is its focus on proactive security. It features Huawei's proprietary iGuard technology, which uses AI algorithms to detect hidden electronic devices like pinhole cameras, safeguarding corporate secrets and personal privacy. This is complemented by Wi-Fi Shield technology to prevent data eavesdropping and the iCSSR algorithm, which optimizes multi-AP collaboration to enhance spectrum efficiency and overall network performance.
Selecting the right wireless access point requires a thorough analysis of your specific performance, density, and security requirements. A solution that excels in one environment may not be the optimal fit for another, especially when dealing with advanced features like those in the AirEngine 6776-X7TH.
NEXUS ITX helps organizations navigate this complexity. We facilitate a structured evaluation process to help you determine if this Huawei AP aligns with your technical and operational goals. We focus on matching your distinct needs to the product's specific capabilities to support a well-informed technology decision.
Q: What is the main advantage of the AirEngine 6776-X7TH being a Wi-Fi 7 (802.11be) access point?
A: The primary advantage of Wi-Fi 7 is a significant increase in speed, capacity, and efficiency. The AirEngine 6776-X7TH leverages this to achieve a theoretical data rate of up to 13.66 Gbps and support up to 1800 concurrent users, making it ideal for high-density environments with demanding applications like 4K/8K video streaming and AR/VR.
Q: How does the iGuard technology work to detect hidden cameras?
A: iGuard technology uses a combination of hardware sensors and AI-powered algorithms. The access point senses electronic signals in the environment and applies multi-dimensional modeling to analyze their characteristics. This allows it to distinguish the unique signatures of electronic devices like pinhole cameras from normal network traffic and other benign electronics.
Q: Can the AirEngine 6776-X7TH be powered by PoE?
A: Yes, the access point is compliant with both 802.3bt and 802.3at Power over Ethernet (PoE) standards. It can also be powered via a DC input (43.2 V to 57.6 V).
Q: What are the key differences in MIMO configuration across the three bands?
A: The AirEngine 6776-X7TH features a 2x2 MIMO configuration for the 2.4 GHz band, 2x2 MIMO for the 5 GHz band, and a more powerful 4x4 MIMO configuration for the 6 GHz band. This prioritizes the cleaner, higher-capacity 6 GHz spectrum for maximum performance.
Q: What is the purpose of the iCSSR multi-AP collaboration algorithm?
A: iCSSR (multi-AP collaboration algorithm) is designed to optimize performance in environments with multiple access points. It intelligently coordinates transmissions and suppresses interference between co-channel APs, which improves overall spectrum efficiency and can boost network performance.
Q: How can I determine if the AirEngine 6776-X7TH's security features are necessary for my environment?
A: Evaluating the need for advanced features like iGuard and Wi-Fi Shield depends on your organization's risk profile and the sensitivity of the information handled in your facilities. Nexus ITX can help you assess your security requirements and compare the capabilities of the 6776-X7TH against your specific privacy and compliance needs to see if it's the right fit.
Contact us to discuss your high-density wireless and security requirements and see if this Wi-Fi 7 access point is the right fit for your organization.
