NetEngine 8000E F2D
As network traffic continues to grow exponentially, organizations require routing platforms that deliver massive capacity, service agility, and intelligent operations without demanding significant physical space. The Huawei NetEngine 8000E F2D is a compact, ultra-high-density router engineered to meet these demands at the network edge and aggregation layers.
Encased in a 2U chassis, this platform provides an impressive 7.2 Tbps of switching capacity, supporting a wide range of interfaces from GE to 400GE. It acts as a converged 4-in-1 platform, consolidating BRAS, SR, CGN, and IPSec functions to simplify network architecture and reduce total cost of ownership. The NetEngine 8000E F2D is built to handle the diverse service access requirements of modern data centers, metropolitan area networks, and cloud bearer services.
The NetEngine 8000E F2D leverages a programmable Network Processor (NP) architecture, ensuring it can evolve to meet future protocol and service demands. Its design provides industry-leading port density, accommodating up to 88 flexible ports in a compact 2U form factor, making it ideal for space-constrained environments.
At its core, the router is designed for simplified, intelligent networking. It features comprehensive support for SRv6, which streamlines network protocols, enables automatic cross-domain connections, and facilitates minute-level service provisioning for one-hop-to-cloud access. Combined with intelligent O&M capabilities and FlexE network slicing, the NetEngine 8000E F2D provides the foundation for building intelligent, agile, and highly reliable IP WANs.
Selecting the right high-performance router requires a thorough analysis of your specific architectural, performance, and operational requirements. The Huawei NetEngine 8000E F2D offers a wide range of configurations and advanced features that must be carefully mapped to your business and technical goals.
Nexus ITX facilitates a structured evaluation process, helping your organization analyze the capabilities of the NetEngine 8000E F2D in the context of your existing and future network infrastructure. We help you make an informed decision based on a clear understanding of how the product aligns with your objectives.
Q: What is the maximum switching capacity of the NetEngine 8000E F2D?
A: The NetEngine 8000E F2D provides a switching capacity of 7.2 Tbps.
Q: What physical size is the router?
A: It is a compact, box-shaped router with a standard 2U height (86.1 mm) and a depth of 600 mm, making it suitable for standard equipment racks.
Q: What are the highest-speed interfaces supported by this platform?
A: The platform supports a range of flexible interfaces, including high-density 400GE, 100GE, 50GE, and 40GE ports, alongside lower-speed 25GE, 10GE, and GE options.
Q: How does the NetEngine 8000E F2D simplify network operations?
A: It leverages intelligent O&M capabilities, primarily through In-situ Flow Information Telemetry (IFIT) when used with iMaster NCE. This allows for real-time visualization of service quality and helps locate network faults within minutes.
Q: What is FlexE network slicing?
A: Flexible Ethernet (FlexE) is a technology that allows a single physical network to be divided into multiple isolated, virtual network slices. This enables different service types (e.g., mobile, broadband, private line) to run on a converged infrastructure without interfering with one another's performance or security.
Q: What is the main benefit of SRv6 support?
A: Segment Routing over IPv6 (SRv6) simplifies the network protocol stack, removing the need for MPLS in many scenarios. It enables intelligent, application-aware traffic steering based on latency or bandwidth needs and automates cross-domain connections for faster service provisioning.

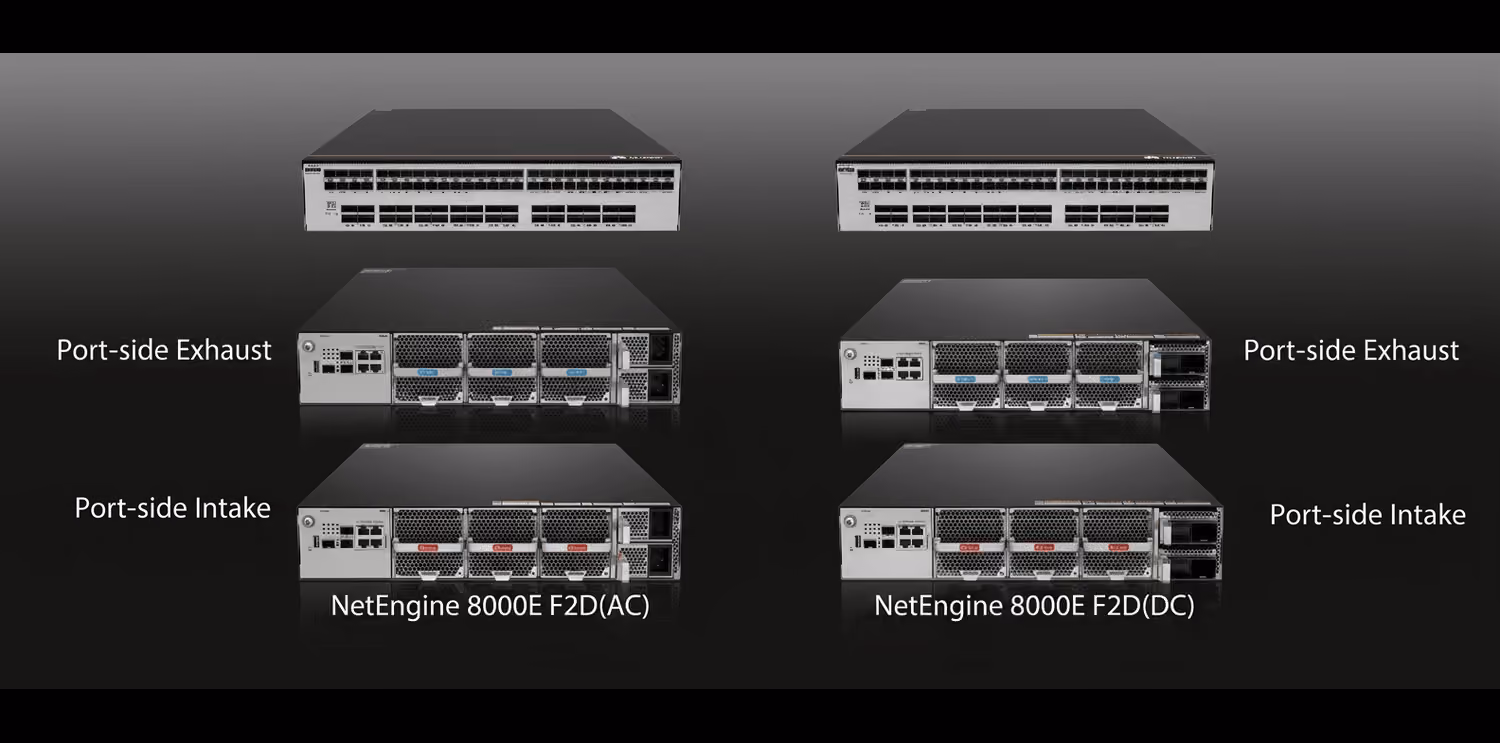

Q: What power supply options are available for the NetEngine 8000E F2D?
A: The router is available in two models to support different power environments: an AC model (90V ~ 290V) and a DC model (–40V ~ –72V). Both models also support High Voltage DC (HVDC).
Q: How can Nexus ITX help me determine if this router is right for my network?
A: Nexus ITX can help you evaluate the NetEngine 8000E F2D against your specific technical requirements, compare its features with your existing infrastructure, and analyze different configurations to determine the best fit for your use case and scalability plans.
Contact Nexus ITX to discuss your technical requirements and align the right router configuration with your architecture.
