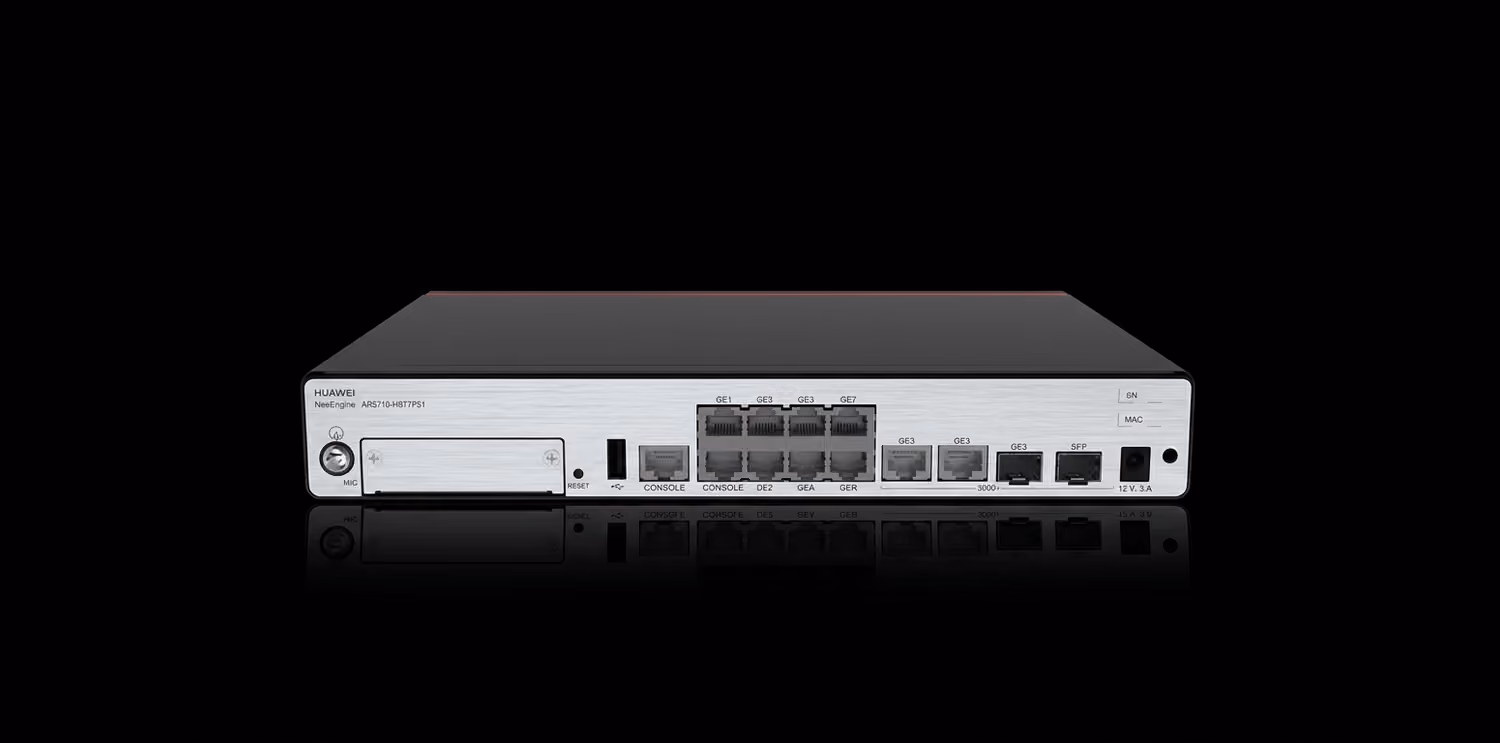

NetEngine AR5710-H Series Enterprise Routers
In today's distributed enterprise, managing branch office infrastructure can be complex and costly. Multiple single-function devices for routing, security, and switching create management overhead and increase potential points of failure. The Huawei NetEngine AR5710-H Series is engineered to solve this challenge by consolidating essential network services into a single, high-performance platform.
Designed as a hyper-converged gateway for the headquarters and branches of small and medium-sized enterprises (SMEs), the AR5710-H series integrates routing, switching, security, and next-generation SD-WAN capabilities. This all-in-one approach simplifies network architecture, reduces operational complexity, and provides a robust foundation for modern, agile branch connectivity.
The Huawei NetEngine AR5710-H series delivers powerful performance to meet the demands of modern applications and encrypted traffic. With forwarding performance up to 4 Gbps and SD-WAN IPsec performance of 2 Gbps, these routers ensure smooth, secure connectivity for business-critical operations. The platform is built to handle complex network policies involving NAT, ACL, and QoS without compromising speed.
Beyond raw performance, the AR5710-H integrates a comprehensive security suite, including a built-in firewall, Intrusion Prevention System (IPS), URL filtering, and Anti-Virus. This allows organizations to enforce granular security policies at the network edge, protecting against threats without the need for separate security appliances. Select models also include built-in Wireless Access Controller (WAC) functionality, further consolidating network management by controlling up to 64 access points.
Selecting the right enterprise router requires a detailed analysis of your organization's specific technical and business requirements. The Huawei NetEngine AR5710-H series offers multiple models with distinct interface configurations and capabilities, and choosing the optimal one is critical for achieving your performance, security, and scalability goals.
NEXUS ITX helps organizations navigate the evaluation process. We focus on a requirements-led approach to ensure the chosen solution aligns perfectly with your existing infrastructure, future growth plans, and operational objectives.
Q: What does "hyper-converged" mean for the NetEngine AR5710-H router?
A: In the context of the AR5710-H, "hyper-converged" means the platform integrates multiple distinct network functions—specifically routing, switching, security (firewall, IPS, etc.), and SD-WAN—into a single physical appliance. This reduces the need for separate devices, simplifying branch infrastructure, lowering costs, and streamlining management.
Q: What kind of performance can I expect for SD-WAN traffic?
A: The NetEngine AR5710-H series is rated for SD-WAN IPsec performance of up to 2 Gbps (using IMIX test traffic). This is distinct from its standard forwarding performance of 4 Gbps and ensures robust throughput for encrypted, overlay network traffic.
Q: Do all models in the AR5710-H series support 5G?
A: No, built-in cellular connectivity is specific to certain models. The NetEngine AR5710-H2T4N2X-NRGL and AR5710-H2T4PN2X-NRGL models are equipped with integrated 5G capabilities, while the AR5710-H4T4N2X-LTE4EA features built-in LTE. Other models do not include integrated cellular modems.
Q: What is the maximum number of Access Points (APs) the integrated WAC can manage?
A: The built-in Wireless Access Controller (WAC) on the AR5710-H series manages 32 Access Points by default. This capacity can be increased to manage a maximum of 64 APs with the appropriate license.
Q: Which model provides Power over Ethernet (PoE)?
A: The NetEngine AR5710-H2T4PN2X-NRGL model supports PoE/PoE+/PoE++. It provides a maximum total power budget of 130 W, which can be distributed across up to 4 of its LAN ports to power devices like VoIP phones, security cameras, or wireless APs.
Q: How does the integrated security suite work?
A: The AR5710-H features a comprehensive suite of security functions that inspect traffic at the network edge. This includes a stateful firewall for access control, an Intrusion Prevention System (IPS) to block known exploits, URL filtering to control web access, and Anti-Virus to scan for malware. These features allow for the creation of robust security policies directly on the gateway.
Q: How can Nexus ITX help me choose the right AR5710-H model?
A: Nexus ITX can assist in the evaluation process by helping you compare the technical specifications of each model against your specific requirements. We can facilitate discussions around your needs for WAN/LAN port types (e.g., 10GE vs. GE), cellular backup (LTE/5G), and PoE, ensuring you select the configuration that best aligns with your operational needs and budget.
Contact us to discuss your technical requirements and compare models to find the ideal fit for your branch infrastructure.
