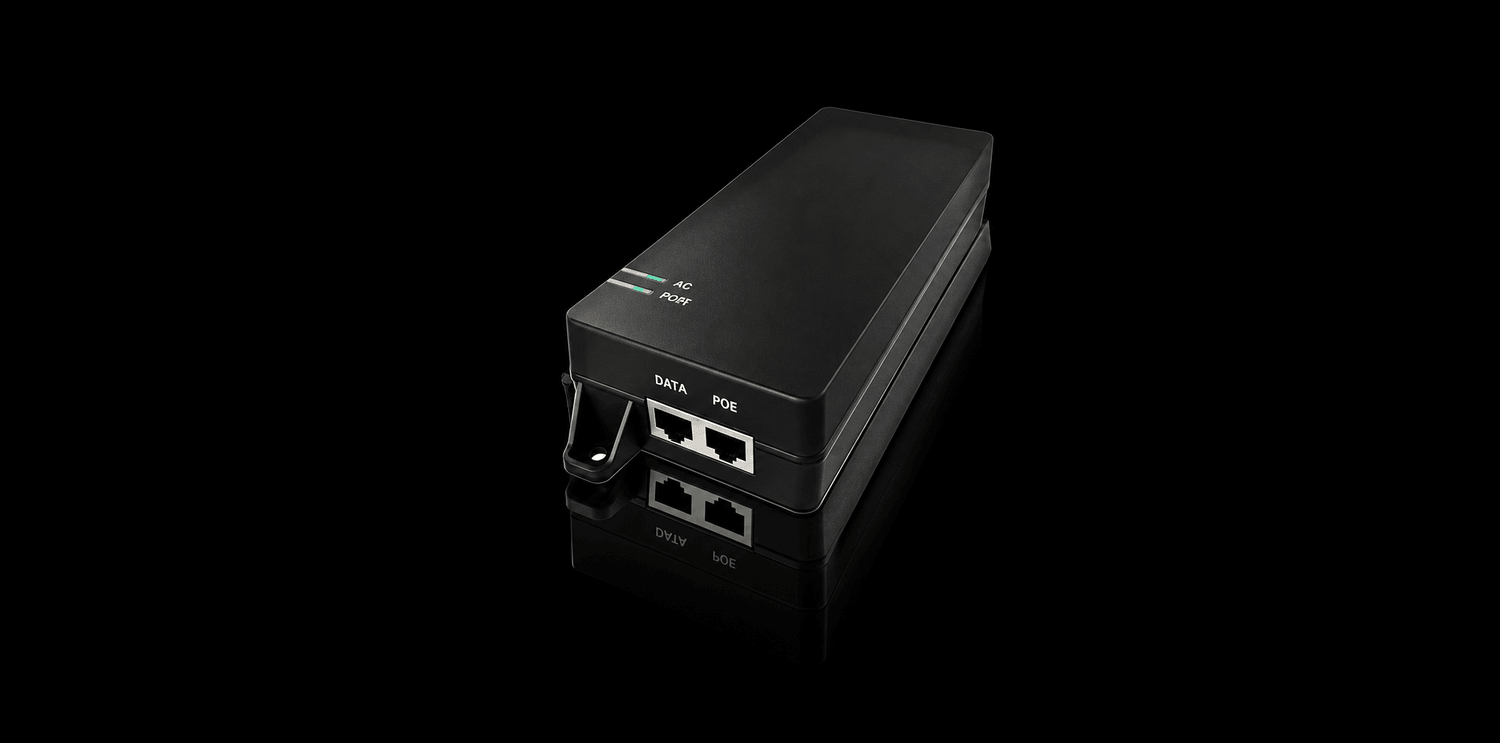

Single-port PoE Power Adapters
Extend your network's reach without the complexity and cost of deploying new PoE-enabled switches. Huawei's Single-port PoE Power Adapters are engineered to solve a common infrastructure challenge: powering network devices like wireless access points, IP cameras, and VoIP phones in locations where only standard AC power is available.
These adapters act as a simple, reliable bridge, safely injecting power into your Ethernet cable alongside data. By supporting gigabit speeds and a range of PoE standards, they ensure your endpoint devices receive the stable power and high-performance connectivity they need to operate effectively, whether deployed in a temperature-controlled office or a rugged outdoor environment.
Huawei's Single-port PoE Adapters provide a direct and efficient power solution, eliminating the need for complex electrical work or major network hardware overhauls. Each unit features two RJ45 interfaces: one for data input from a non-PoE switch or network source, and another for combined power and data output to your PoE-enabled device. This streamlined design simplifies cabling and accelerates the deployment of critical network endpoints.
Built for versatility, these adapters are available in two models to meet distinct power and environmental demands. Both models support a wide AC input voltage range (90–290 V) for stable operation in diverse power conditions. By complying with key IEEE standards, including 802.3at/af and 802.3bt on the higher-end model, they offer broad compatibility with a wide array of network devices from various manufacturers.
Selecting the correct power adapter is critical to ensure device performance, network stability, and operational safety. Mismatched power budgets or environmental ratings can lead to device failure and costly downtime. NEXUS ITX helps organizations navigate these technical considerations to make an informed decision.
Our approach focuses on aligning the product's capabilities with your specific operational and architectural requirements. We assist in a thorough evaluation process to confirm that the chosen Huawei PoE adapter is the right fit for your network endpoints and the environments in which they will be deployed.
Q: What is the main difference between the AD-560062T0E and AD-560161T0E models?
A: The primary differences are power output and operating temperature range. The AD-560062T0E provides up to 35 W of power and operates from –25°C to +50°C. The AD-560161T0E delivers a higher output of 90 W, supports the IEEE 802.3bt standard, and is built for more extreme conditions with a range of –40ºC to +65ºC.
Q: Can I use these adapters to power any network device?
A: These adapters are designed specifically for devices that are Power over Ethernet (PoE) enabled and compliant with IEEE 802.3af, 802.3at, or 802.3bt standards. They will not power non-PoE devices.
Q: Do I need a PoE-enabled switch to use these adapters?
A: No. The purpose of these adapters is to add PoE functionality to a network link. You connect the adapter to a standard, non-PoE switch port and an AC power outlet, and it will inject power into the Ethernet cable running to your end device.
Q: What is the maximum data speed supported by these adapters?
A: Both models support a maximum port rate of 1,000 Mbit/s (1 Gbps), ensuring they do not create a bottleneck for high-speed network devices like modern Wi-Fi access points.
Q: How does NEXUS ITX help me choose the right PoE adapter model?
A: NEXUS ITX assists in the technical evaluation process. We can help you analyze the power requirements of your specific PoE devices (e.g., a Wi-Fi 6 AP vs. a PTZ camera), review the environmental conditions of your deployment site, and compare them against the specifications of each adapter model to help you select the most suitable option.
Contact us to discuss your specific power requirements and evaluate the best model for your access points, cameras, or other PoE devices.
